LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die

  • LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die
Luogo di origine Anhui, Cina
Marca LYNCCN
Certificazione ISO9001
Quantità di ordine minimo 3 pezzo
Prezzo Negoziabile
Imballaggi particolari Scatola di legno
Tempi di consegna 30 giorni
Termini di pagamento T/T
Capacità di alimentazione 500 pezzi/pezzi al mese

Contattatemi per campioni e buoni.

鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome del prodotto Stampo a V singolo per pressa idraulica personalizzata LYNCCN WAY100.80 V80 Marca Lynccn
Categoria di prodotto Stampa il freno V Apertura 80 mm
Larghezza 100 mm Durezza HRC50 ± 2
Materiale 42crmo Altezza 120 mm
Angolo 80 ° Imballaggio Scatola di legno
Evidenziare

Single V Hydraulic Press Brake Tooling

,

Custom Hydraulic Press Brake Tooling

,

LYNCCN WAY100.80 V80 Tooling
Lasciate un messaggio
Descrizione di prodotto

A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.


This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

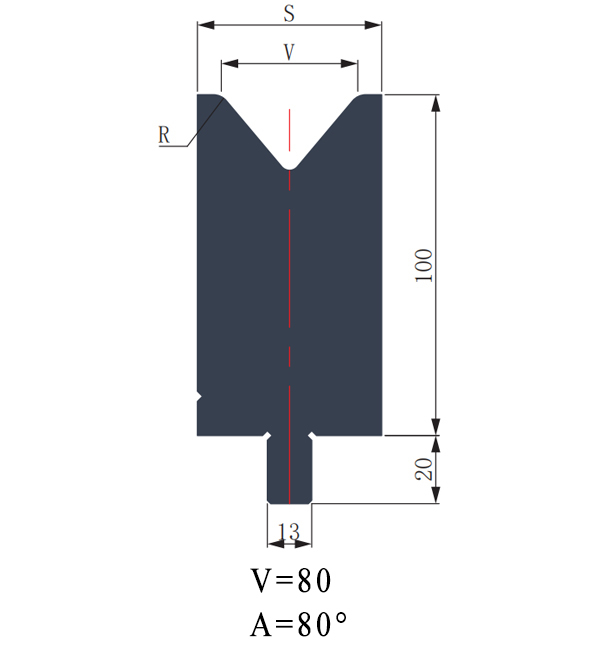

Technical Parameters:


Product Type Press Brake Die
Length 550mm/500mm
Brand LYNCCN
Width 100mm
Height 120mm
Angle 80°
V Opening 80mm
Hardness HRC48-52
Heat Treatment Induction Hardening
Material 42CrMo
Max. Load 100T/M
Packing Wooden Box
Delivery Time 30 days



Standard Segmentation:



500mmLYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die 0

515mm

LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die 1

550mm Segmentation

LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die 2



Applications:


Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.


LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die 3

LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die 4

LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die 5

LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die 6

LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die 7

LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die 8
